Traffic Management with Istio

Note

For more background information, make sure to check out the demos overview page.

This demo uses minikube, kubectl, and istioctl to setup and exercise traffic shaping. See also the official docs for istio1, and the more specific docs on traffic control2. Note also that minikube actually has an official istio addon3, but the approach here avoids that to remain agnostic about the details of cluster-backend.

For this example, we'll implement the standard A/B testing scenario. The twist is that we're using our distributed system just to create a (un)fair coin with istio traffic shapping. There are two services, Alice and Bob. Alice always returns heads, and Bob always returns tails. An istio virtual-service represents the coin toss itself, and we adjust coin fairness by adjust the traffic control policy.

Basic Usage

Running the demo is simple:

# Default entrypoint runs clean, create,
# deploy, test, but does not tear down the cluster.
$ ./demos/istio.mk

For the first run of the stuff above, you can already see two trials. The first one runs with a 50/50 traffic split between Alice and Bob, and the second test runs with a 95/5 split. You can change the split again and re-execute the trial run like this:

# Change traffic-split to 80 / 20, and rerun tests to confirm
$ ./demos/istio.mk app.traffic.policy/80,20 app.run.trials

End-to-End Output

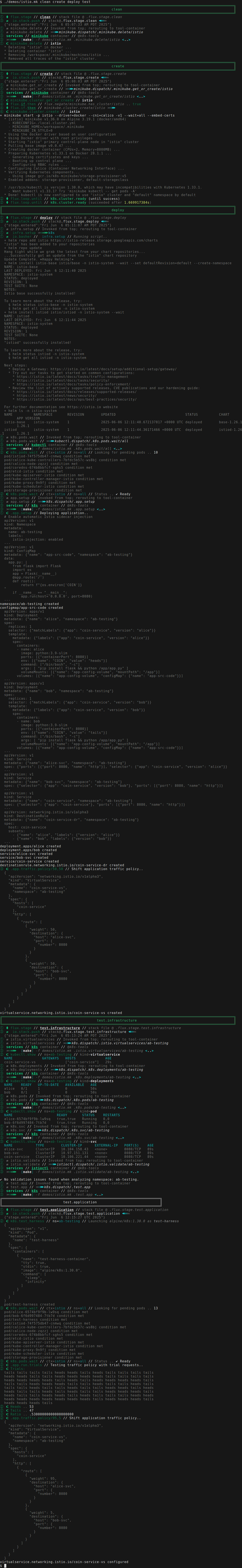

The following (large) image shows the full output of ./demos/submariner.mk clean create deploy test teardown.

# End-to-end, again without teardown
$ ./demos/istio.mk clean create deploy test

Source Code

Summary
#!/usr/bin/env -S make -f
# Demonstrating multicluster networking with minikube, calico,
# and submariner.  Verbs include: create, destroy, deploy, etc.
#
# See the documentation here[1] for more discussion.
# This demo ships with the `k8s-tools` repo and runs as part of the test-suite.
#
# USAGE:
#   ./demos/istio.mk clean create deploy test
#
# REF:
#   [1] https://robot-wranglers.github.io/k8s-tools/demos/istio/
#   [2] https://istio.io/latest/docs/setup/install/helm/
#░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

include k8s.mk
export KUBECONFIG:=./local.cluster.yml
$(shell umask 066; touch ${KUBECONFIG})

$(call compose.import, file=k8s-tools.yml)
__main__: clean create deploy test

minikube.args=--driver=docker --cni=calico -v1 --wait=all --embed-certs
cluster.name=istio

clean: stage/clean minikube.delete/${cluster.name}
wait: k8s.pods.wait
test: wait test.infra test.app
create: stage/create minikube.get_or_create/${cluster.name}
deploy: stage/deploy infra.setup wait app.setup wait

# Infrastructure entrypoints
#░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

export istio_chart=https://istio-release.storage.googleapis.com/charts
export istio_namespace=istio-system

# Infrastructure setup.  Use `helm` to setup istio
# NB: for idempotence use instead `ansible.helm` --
# this is just to demonstrate using `compose.bind.script`
infra.setup:; $(call compose.bind.script, svc=k8s env='istio_chart istio_namespace')
define infra.setup
set -x
helm repo add istio ${istio_chart}
helm repo update
helm install istio-base \
  istio/base -n ${istio_namespace} --wait \
  --set defaultRevision=default --create-namespace
helm install istiod istio/istiod -n ${istio_namespace} --wait
helm ls -n ${istio_namespace}
endef

# Test infrastructure by grabbing details
# about a few things that were deployed.
test.infra: stage/test.infrastructure \
  istio.virtualservices/ab-testing \
    k8s.deployments/ab-testing k8s.pods/ab-testing \
    k8s.svc/ab-testing istio.validate/ab-testing

# Demonstrate idiom for calling a task in a container.
# Read manifests from this file using `mk.def.read`,
# then pipe data to kubectl apply.  This deploys the
# flask app, wraps it in virtual service, then sets the
# traffic policy
app.setup:; $(call compose.bind.target, k8s)
self.app.setup:
    $(call log.k8s, ${@} ${sep} Deploying application..)
    ${mk.def.read}/base.manifest.yml | ${kubectl.apply.stdin}
    ${mk.def.read}/services.manifest.yml | ${kubectl.apply.stdin}
    ${make} app.traffic.policy/50,50

# Helper to set the traffic policy.
# This accepts 2 arguments describing the split, e.g "50,50".
# This reads the traffic policy from this file, rewrites it,
# reflecting the given arguments, then posts the changes to
# the cluster,all using pipes.
app.traffic.policy/%:; $(call compose.bind.target, k8s)
self.app.traffic.policy/%:
    $(call log.k8s, ${@} ${sep} Shift application traffic policy..)
    first=`echo ${*} | cut -d, -f1` \
    && second=`echo ${*} | cut -d, -f2` \
    && ${mk.def.read}/traffic.manifest.yml \
    | ${yq} -o json \
    | ${jq} ".spec.http[0].route[0].weight=$${first}" \
    | ${jq} ".spec.http[0].route[1].weight=$${second}" \
    | ${kubectl.apply.stdin}

# Run trials with the default traffic policy,
# then change the policy and rerun the trials
# just to confirm that the policy changed
test.app:; $(call compose.bind.target, k8s)
self.test.app: stage/test.application \
    k8s.test_harness/ab-testing/test-harness wait \
    app.run.trials app.run.trials/95,5

# Call the web-app repeatedly to get coin-flip data.
app.run.trials/%:; ${make} app.traffic.policy/${*} app.run.trials
    @# Shifts traffic policy, then runs trials.
app.run.trials:; $(call compose.bind.target, k8s)
self.app.run.trials:
    $(call log.k8s, ${@} ${sep} Testing traffic policy with trial requests..)
    num_trials=$${num_trials:-100} \
    && result="`seq $${num_trials} \
    | xargs -I% echo curl -fsS coin-service.ab-testing.svc.cluster.local:8080 \
    | kubectl exec -i -n ab-testing test-harness -- bash`" \
    && $(call k8s.log, Trials:) \
    && printf "$${result}" | ${stream.fold} | ${stream.as.log} \
    && heads=`printf "$${result}" | grep heads | ${stream.count.lines}` \
    && tails=`printf "$${result}" | grep tails | ${stream.count.lines}` \
    && ratio=`echo $${heads} / $${num_trials} | bc -l` \
    && $(call k8s.log.part1, Heads) && $(call k8s.log.part2, $${heads}) \
    && $(call k8s.log.part1, Tails) && $(call k8s.log.part2, $${tails}) \
    && $(call k8s.log.part1, Ratio) && $(call k8s.log.part2, $${ratio})

# Embedded data
#░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

define base.manifest.yml
# Enable automatic Istio sidecar injection
apiVersion: v1
kind: Namespace
metadata:
  name: ab-testing
  labels:
    istio-injection: enabled
---
apiVersion: v1
kind: ConfigMap
metadata: {"name": "app-src-code", "namespace": "ab-testing"}
data:
  app.py: |
    from flask import Flask
    import os
    app = Flask(__name__)
    @app.route('/')
    def root():
        return f"{os.environ['COIN']}\n"
    if __name__ == "__main__":
        app.run(host='0.0.0.0', port=8080)
---
endef

define traffic.manifest.yml
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata: {"name": "coin-service-vs", "namespace": "ab-testing"}
spec:
  hosts: ["coin-service"]
  http:
  - route:
    - {"weight": 50, "destination": {"host": "alice-svc", "port": {"number": 8080}}}
    - {"weight": 50, "destination": {"host": "bob-svc", "port": {"number": 8080}}}
endef

define services.manifest.yml
apiVersion: apps/v1
kind: Deployment
metadata: {"name": "alice", "namespace": "ab-testing"}
spec:
  replicas: 1
  selector: {"matchLabels": {"app": "coin-service", "version": "alice"}}
  template:
    metadata: {"labels": {"app": "coin-service", "version": "alice"}}
    spec:
      containers:
      - name: alice
        image: python:3.9-slim
        ports: [{"containerPort": 8080}]
        env: [{"name": "COIN", "value": "heads"}]
        command: ["/bin/bash", "-c"]
        args: [ "pip install flask && python /app/app.py" ]
        volumeMounts: [{"name": "app-config-volume", "mountPath": "/app"}]
      volumes: [{"name": "app-config-volume", "configMap": {"name": "app-src-code"}}]
---
apiVersion: apps/v1
kind: Deployment
metadata: {"name": "bob", "namespace": "ab-testing"}
spec:
  replicas: 1
  selector: {"matchLabels": {"app": "coin-service", "version": "bob"}}
  template:
    metadata: {"labels": {"app": "coin-service", "version": "bob"}}
    spec:
      containers:
      - name: bob
        image: python:3.9-slim
        ports: [{"containerPort": 8080}]
        env: [{"name": "COIN", "value": "tails"}]
        command: ["/bin/bash", "-c"]
        args: [ "pip install flask && python /app/app.py" ]
        volumeMounts: [{"name": "app-config-volume", "mountPath": "/app"}]
      volumes: [{"name": "app-config-volume", "configMap": {"name": "app-src-code"}}]
---
apiVersion: v1
kind: Service
metadata: {"name": "alice-svc", "namespace": "ab-testing"}
spec: {"ports": [{"port": 8080, "name": "http"}], "selector": {"app": "coin-service", "version": "alice"}}
---
apiVersion: v1
kind: Service
metadata: {"name": "bob-svc", "namespace": "ab-testing"}
spec: {"selector": {"app": "coin-service", "version": "bob"}, "ports": [{"port": 8080, "name": "http"}]}
---
apiVersion: v1
kind: Service
metadata: {"name": "coin-service", "namespace": "ab-testing"}
spec: {"selector": {"app": "coin-service"}, "ports": [{"port": 8080, "name": "http"}]}
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata: {"name": "coin-service-dr", "namespace": "ab-testing"}
spec:
  host: coin-service
  subsets:
    - {"name": "alice", "labels": {"version": "alice"}}
    - {"name": "bob", "labels": {"version": "bob"}}
---
endef
